This second part goes a little further than part 1. I could have went about this many ways, but I wanted to use Azure Resource Graph with a Logic App as why not eh?

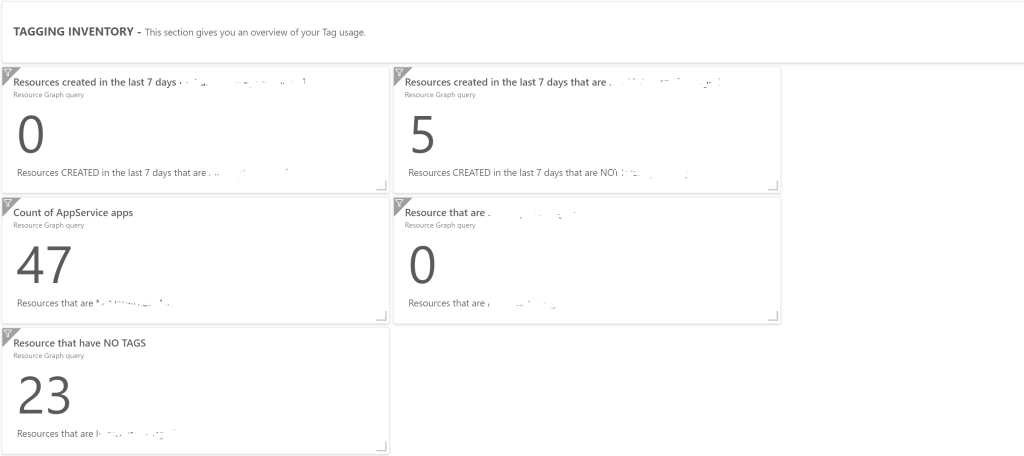

So I created a dashboard in Azure from the queries I wrote and it looks something like this: -

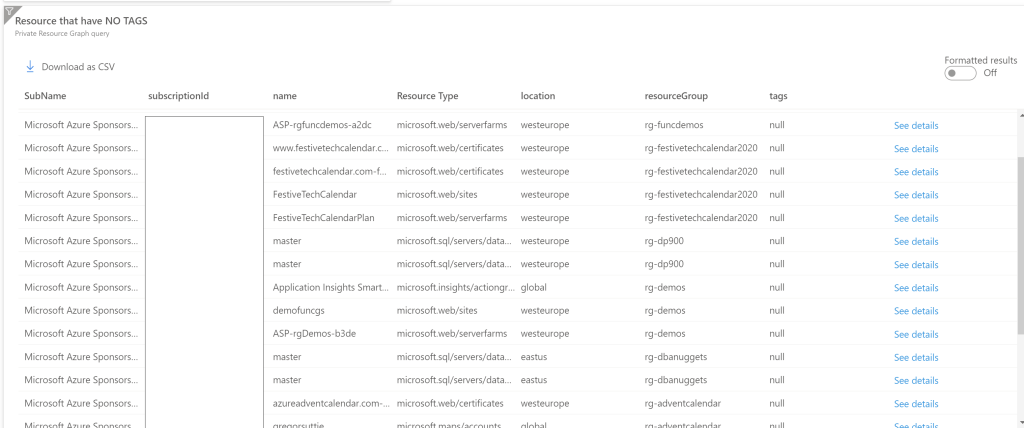

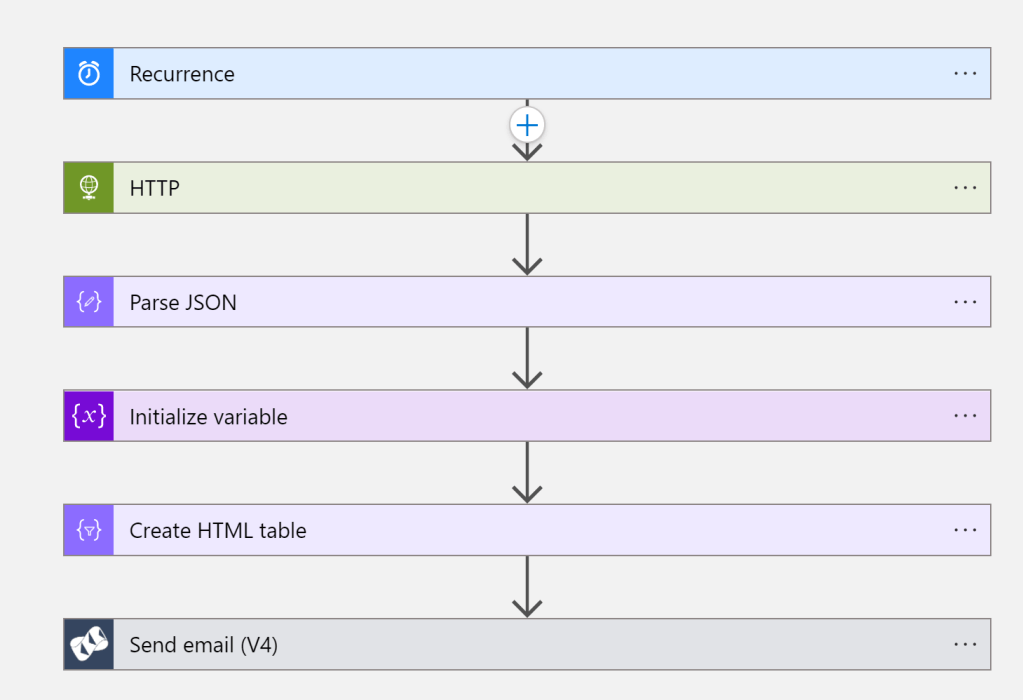

So from the bottom part which says - Resources thats have No Tags I wanted to email a report to myself every x days. So I created a Logic App which looks like this:-
Step 1 - is a recurrence trigger of x days Step 2 - I call the manangement api which is -> https://management.azure.com/providers/Microsoft.ResourceGraph/resources?api-version=2019-04-01
With a JSON Payload like so:-
{ “query”: “Resources | join kind=leftouter (ResourceContainers | where type==‘microsoft.resources/subscriptions’ | project SubName=name, subscriptionId) on subscriptionId | mvexpand tags | extend tagKey = tostring(bag_keys(tags)[0]) | extend tagValue = tostring(tags[tagKey]) | where tagKey == ’’ and tagValue == ’’ | order by resourceGroup | project SubName, subscriptionId, name, [‘Resource Type’]=type, location, resourceGroup, tags”, “subscriptions”: [ “subscription id goes here” ] }

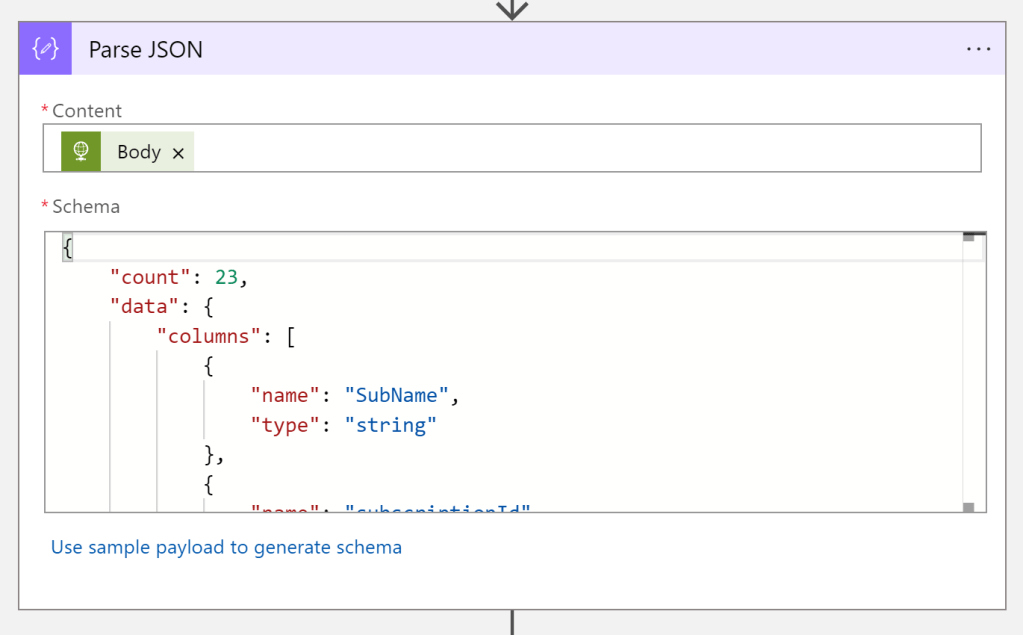

Step 3 - I then parse the JSON which looks like this:-

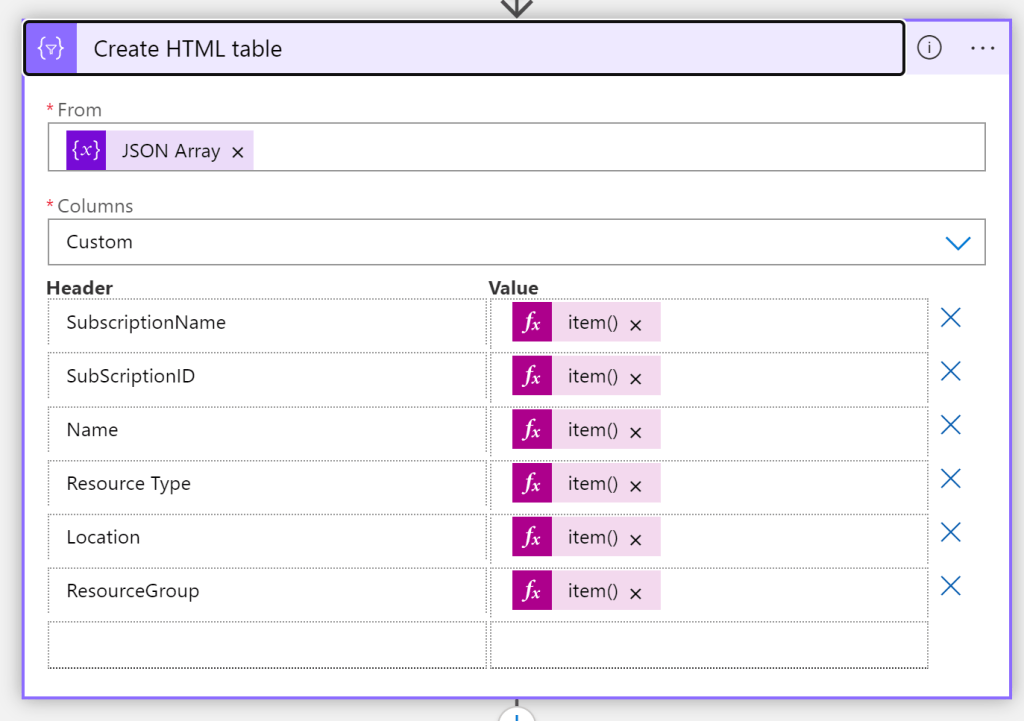

Step 4 - I use an initialize variable with the sample json returned from the API call in Step 2 Step 5 - I create an HTML Table which formats my results like so:-

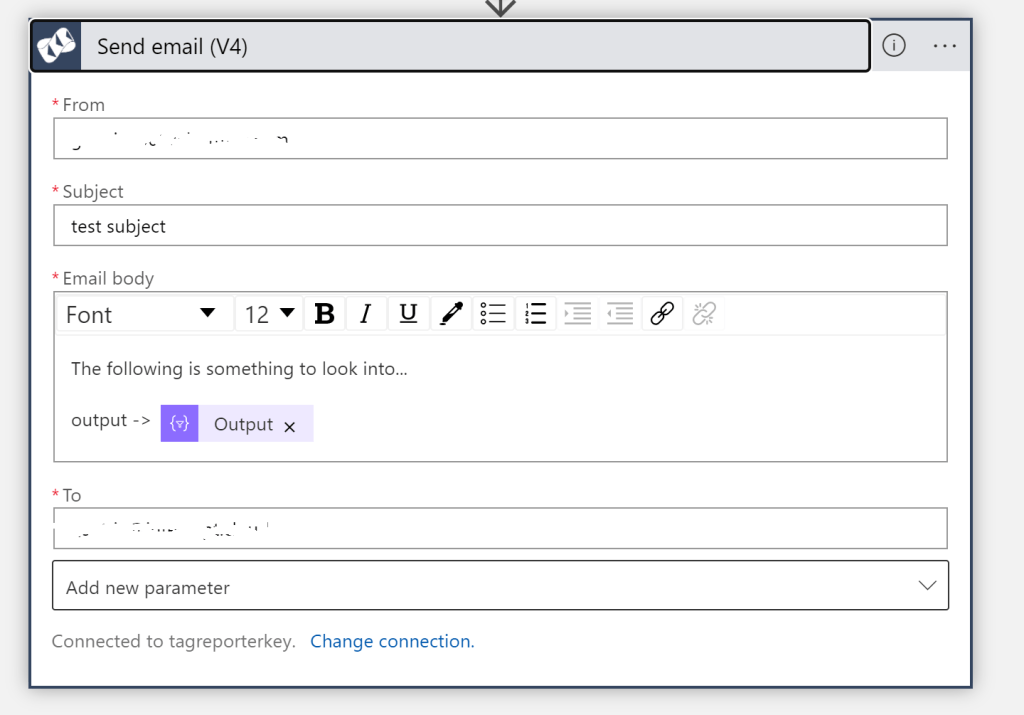

Step 6 - I then send the email using whatever you like - I chose SendGrid and that looks like this:-
So every x days I get a report telling me whatever is in the Azure Resource Graph, formatted in an email.
