Microsoft Security Code Analysis for Azure Devops – Part 3 BinSkim

Posted by

Microsoft has recently released a new set of security tooling for Azure Devops which is called Microsoft Security Code Analysis.

The Microsoft Security Code Analysis Extension is a collection of tasks for the Azure DevOps Services platform. These tasks automatically download and run secure development tools in the build pipeline.

In this post I’ll cover BinSkim and how to use it.


BinSkim
BinSkim is a Portable Executable (PE) light-weight scanner that validates compiler/linker settings and other security-relevant binary characteristics. The build task provides a command line wrapper around the BinSkim.exe application. BinSkim is an open source tool.

Setup:

  1. Open your team project from your Azure DevOps Account.
  2. Navigate to the Build tab under Build and Release
  3. Select the Build Definition into which you wish to add the BinSkim build task.
    New – Click New and follow the steps detailed to create a new Build Definition.
    Edit – Select the Build Definition. On the subsequent page, click Edit to begin editing the Build Definition.
  4. Click + to navigate to the Add Tasks pane.
  5. Find the BinSkim build task either from the list or using the search box and then click Add.
  6. The BinSkim build task should now be a part of the Build Definition. Add it after the publishing steps for your build artifacts.

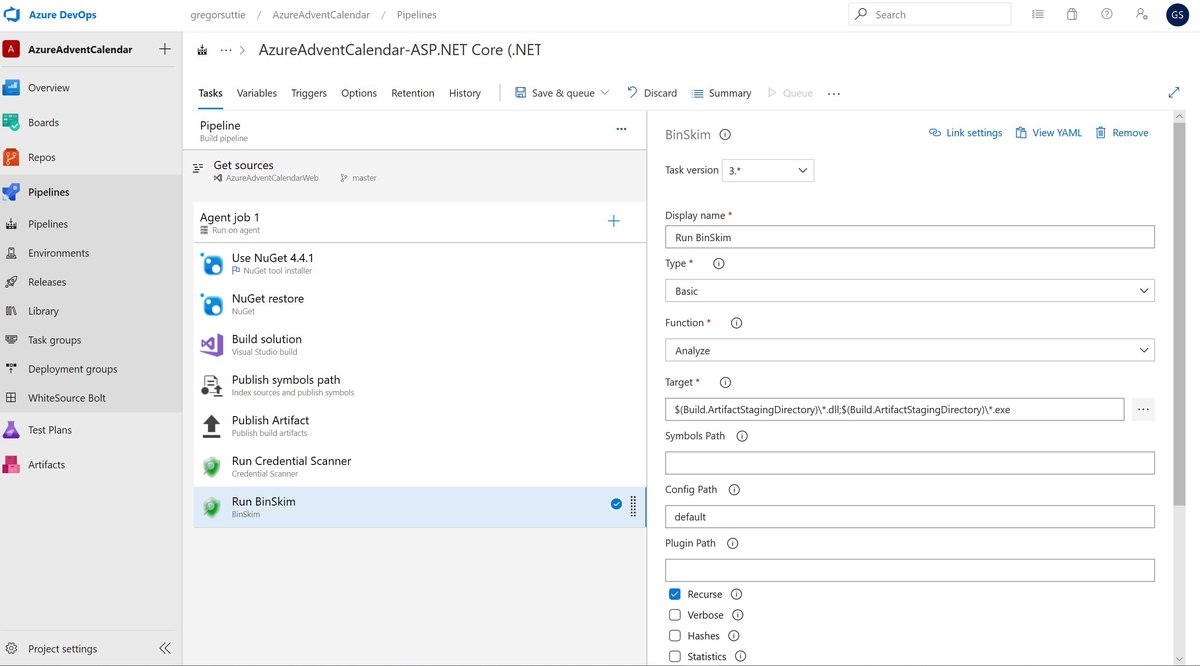

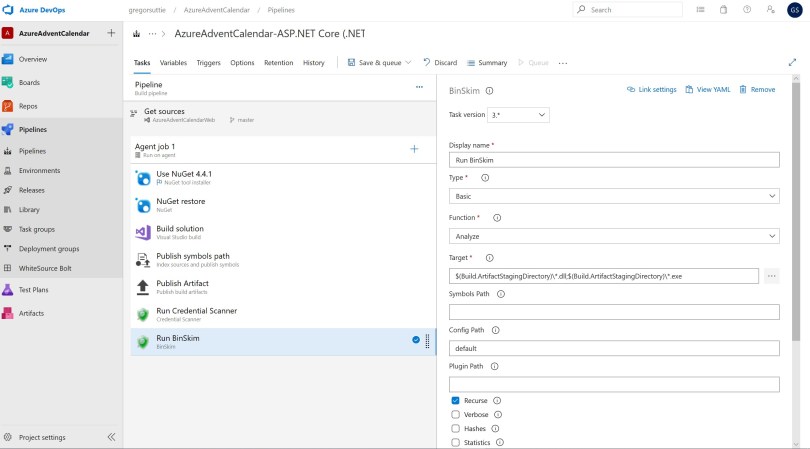

Customizing the BinSkim Build Task:

  1. Click the BinSkimtask to see the different options available within.
  2. Set the build configuration to Debug to produce *.pdb debug files. They are used by BinSkim to map issues found in the output binary back to source code.
  3. Choose Type = Basic & Function = Analyze to avoid researching and creating your own commandline.
  4. Target – One or more specifiers to a file, directory, or filter pattern that resolves to one or more binaries to analyze.
    • Multiple targets should be separated by a semicolon(;).
    • Can be a single file or contain wildcards.
    • Directories should always end with \*
    • Examples:
      • *.dll;*.exe
      • $(BUILD_STAGINGDIRECTORY)\*
      • $(BUILD_STAGINGDIRECTORY)\*.dll;$(BUILD_STAGINGDIRECTORY)\*.exe;
    • Make sure the first argument to BinSkim.exe is the verb analyze using full paths, or paths relative to the source directory.
    • For Command Line input, multiple targets should be separated by a space.
    • You can omit the /o or /output file parameter; it will be added for you or replaced.
    • Standard Command Line Configuration
      • analyze $(Build.StagingDirectory)\* –recurse –verbose
      • analyze *.dll *.exe –recurse –verbose
      • Note that the trailing \* is very important when specifying a directory or directories for the target.

    BinSkim User Guide

    For more details on BinSkim whether command line arguments or rules by ID or exit codes, visit the BinSkim User Guide
