How I built an app to manage Azure using AI

This article is my entry into this year’s Azure Spring Clean 2026 event. Huge thanks to the organisers!

A customer asked me how to interpret Azure Application Insights and whether it would be possible to build a web app to help them understand what Application Insights was reporting about app performance.

The prompt I used was as follows:-

To run this, I went into GitHub Copilot CLI and then used/plan and then type the prompt

I need a website to look at my production application insights and help me figure out the good and the bad within it – the resource is called appinsights-customername-prod, in the resource group called rg-app-insights-prod within the subscription <redacted> – do this using the latest version of C #.

That’s it, the full prompt, start small, build onto itas you go. As you may guess, this is quite a vague prompt, but enough to get started with.

The plan it comes back looked like so:-

Plan: Application Insights Health Dashboard (Blazor Server, .NET 9)

A Blazor Server web application that queries the production Application Insights resource using the Azure Monitor Query SDK and DefaultAzureCredential, presenting a real-time dashboard split into “green” (healthy signals) and “red” (problems) sections with a user-selectable time range.

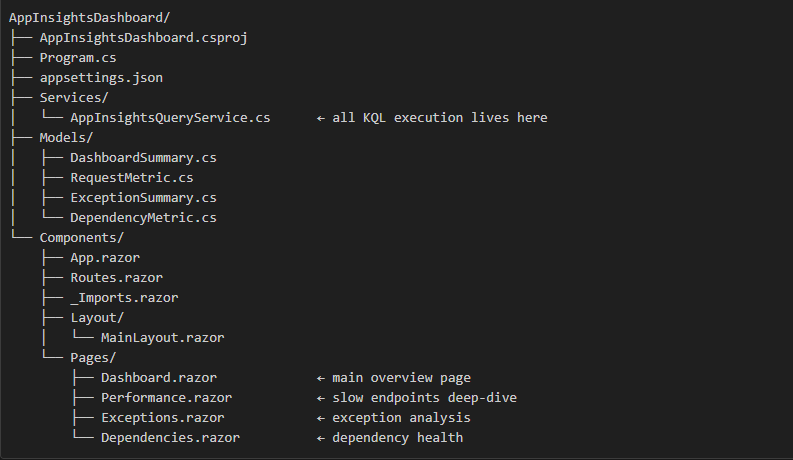

Project Layout

All files created inside a new c:\personal\code\phillip\AppInsightsDashboard\ folder:

Steps

1. Create the project — dotnet new blazorserver targeting net9.0 at c:\personal\code\gregor\AppInsightsDashboard
2. Add NuGet packages to the .csproj:
   • Azure.Monitor.Query — logs (KQL) and metrics queries
   • Azure.Identity — DefaultAzureCredential for auth (uses az login locally)
3. Configure appsettings.json — store only the non-secret App Insights resource ID:
   • Resource ID: /subscriptions/<redacted>/resourceGroups/rg-app-insights-prod /providers/microsoft.insights/components/appinsights-customername-prod
   • No connection strings or secrets in config
4. Program.cs — register LogsQueryClient and MetricsQueryClient as singletons using DefaultAzureCredential, register AppInsightsQueryService as scoped
5. AppInsightsQueryService.cs — wraps LogsQueryClient.QueryResourceAsync(resourceId, kql, timeRange) and exposes typed async methods for each dashboard section:
   • GetSummaryAsync(TimeRange) → total requests, success %, avg duration, exception count
   • GetSlowestEndpointsAsync(TimeRange) → p50/p95/p99 by operation name
   • GetExceptionSummaryAsync(TimeRange) → exception type, count, last seen
   • GetDependencyHealthAsync(TimeRange) → name, success rate, avg duration
   • GetFailedRequestsAsync(TimeRange) → recent failed requests with details
   • GetRecentExceptionsAsync(TimeRange) → raw exception feed
6. KQL queries used (all target the App Insights classic tables via QueryResourceAsync):
   • requests | where timestamp > ago(Xh) | summarize ...
   • exceptions | where timestamp > ago(Xh) | summarize count() by type | order by count_ desc
   • dependencies | where timestamp > ago(Xh) | summarize ...
   • Performance percentiles via percentiles(duration, 50, 95, 99)
7. Dashboard.razor — the main page with:
   • Time range selector (dropdown: 1h / 6h / 24h / 7d) that triggers re-query
   • Summary cards row: total requests, success rate (colour-coded), avg duration, exception count
   • “The Good” section: top performing endpoints, successful dependency calls
   • “The Bad” section: failed requests, top exceptions, slow dependencies
   • Loading spinner while queries run; error boundary for query failures
8. Performance.razor — sortable table of all endpoints with p50/p95/p99 duration, request volume, failure rate
9. Exceptions.razor — exception type breakdown bar chart (using inline SVG or a lightweight JS chart interop) + scrollable raw exception feed with stack trace expansion
10. Dependencies.razor — dependency type (SQL, HTTP, etc.) success/failure rates and avg duration, colour-coded rows (red if success rate < 95%)
11. MainLayout.razor — simple nav sidebar linking to the four pages, shows the App Insights resource name in the header

Authentication note

Locally, DefaultAzureCredential picks up az login credentials automatically. The signed-in account needs at least Reader on rg-enogrp-point-prd-workload and Log Analytics Reader on the linked workspace (or Monitoring Reader at the resource group level).

Verification

• dotnet run → opens http://localhost:5000, dashboard loads with real data
• Time range dropdown changes refresh all cards without page reload
• Red/amber/green thresholds visible: success rate < 99% = amber, < 95% = red; avg duration > 500ms = amber
• Navigate to each sub-page and confirm tables populate

Decisions

• QueryResourceAsync used over QueryWorkspaceAsync — no need to look up the linked workspace ID separately; App Insights resource ID is sufficient for all requests/exceptions/dependencies/traces tables
• Blazor Server chosen over WASM — avoids CORS concerns with Azure SDK calls from browser, keeps credentials server-side
• DefaultAzureCredential — zero-config for local az login use, Managed Identity ready if later deployed to Azure

Confirm this plan and I can hand it off to an implementation agent, or let me know if you’d like any adjustments (e.g. add a specific custom event table, change colour thresholds, add charts library, etc.).

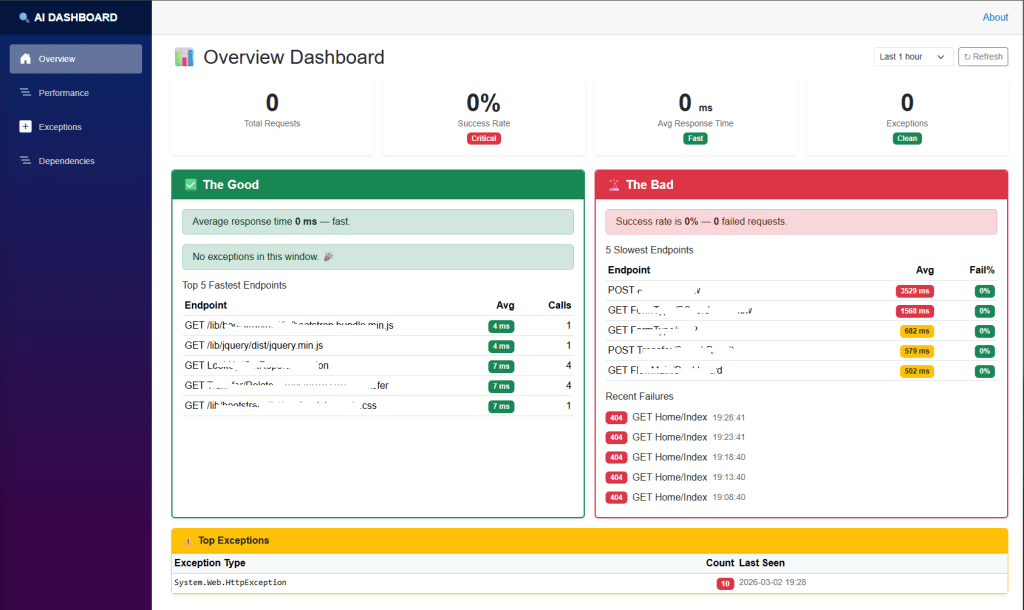

I then confirm the plan and this was the end result.

So, from a single prompt, I have a new Blazor website with an overview page, a performance page, an exceptions page, and a dependencies page. Now I can go back, style it, change it, add to it, do whatever I want.

I have no dependencies on other tools, I don’t need to version it, and tell people there is an update available, there is nothing to download and install – I am using AI to do the job for me.

Pro tip: Once you’re happy with changes, ask AI to code review, ask it how I can make it even better, more secure, etc., and then and only then create a PR and check it in after it’s been reviewed.

This is just how easy it is to create a web app that you can use, run locally, and build all sorts of useful tools.
